ASTM A270 Tubes
ASTM A270 Tubes

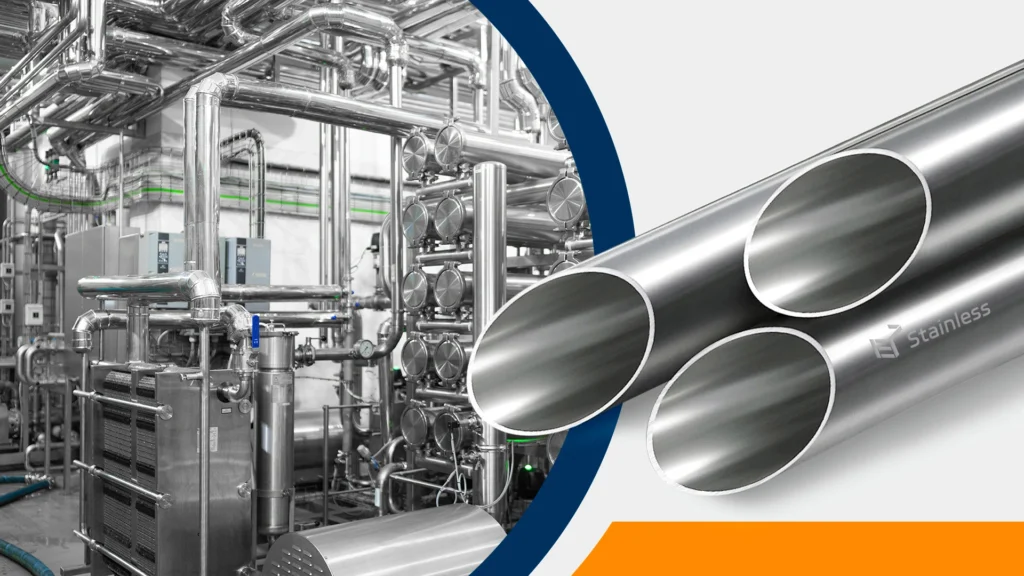

ASTM A270 stainless steel tube is a sanitary welded tube made to the American ASTM A270 standard. It is available in grades 304, 304L, 316, and 316L.
A270 tube has strict requirements for both the inner and outer surface finish. The inner surface must be professionally polished. This ensures that fluids flow through the tube without leaving residue or buildup, and the tube is easy to clean. This makes A270 tube a reliable choice for applications where hygiene and safety are important.
A270 stainless steel tube is mainly used in industries with strict hygiene standards, such as food processing, beverage production, dairy, and pharmaceuticals. It is widely used in these industries for transporting, processing, and circulating liquid materials. It is one of the most common tube materials used in sanitary fluid systems.
Specifications
ASTM A270 stainless steel tubes mainly use round tubes. Round tubes have a clear advantage in sanitary applications. The smooth, round interior has no corners or dead zones. Fluids flow easily and the tube is simple to clean thoroughly. This helps prevent material buildup and bacterial growth. That is why round stainless steel tube is the most common choice for piping systems in the food, beverage, and pharmaceutical industries.

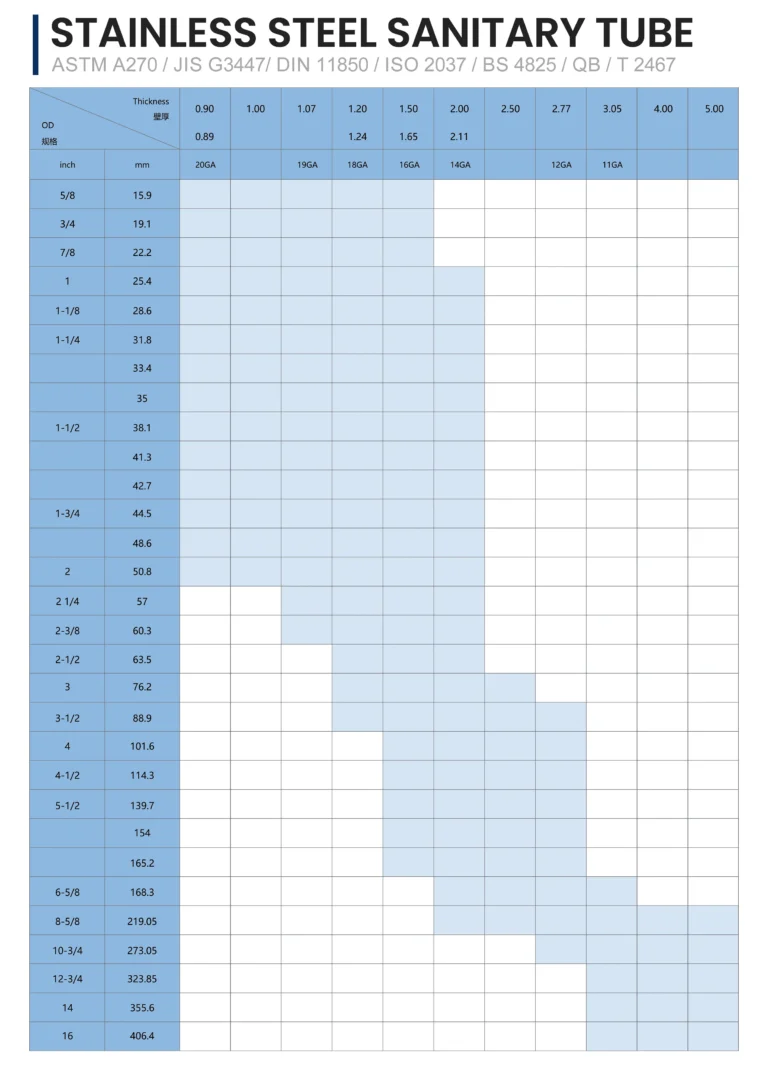

Below are the main specifications of the ASTM A270 tubes we supply. Please contact us if you need a special size.
Standard
ASTM A270 / DIN 11850 / JIS G3447 / ISO 2037 / BS 4825 / QB/T 2467
Outside Diameter
15.9 to 406.4 mm
Thickness
0.9 to 5 mm
Surface Finish
400# / 500# / 600# / 8K / customized
Material
201, 304, 304L, 316, 316L, 430
Applications

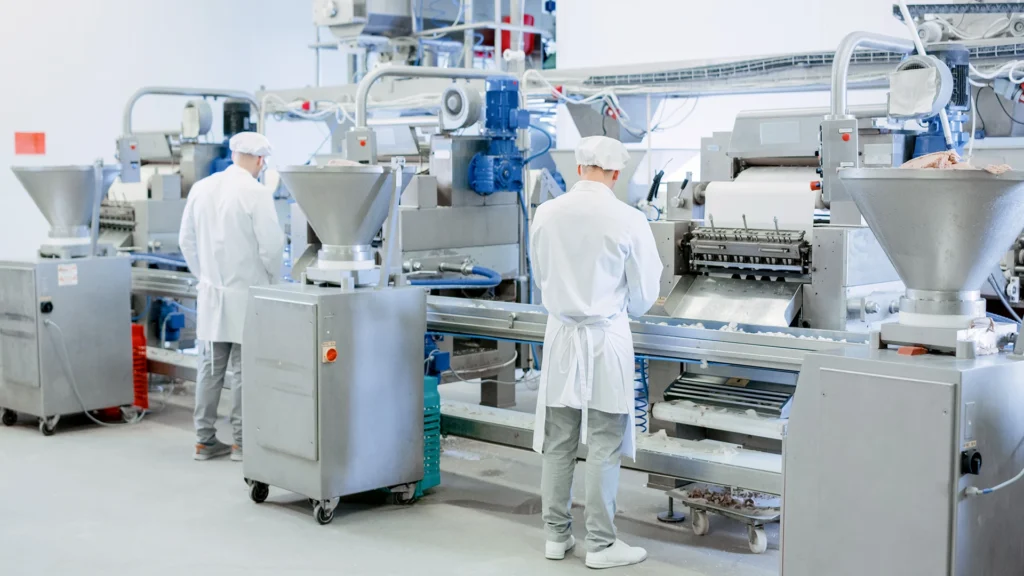

Stainless Steel Welded Tubes for Food Processing Systems

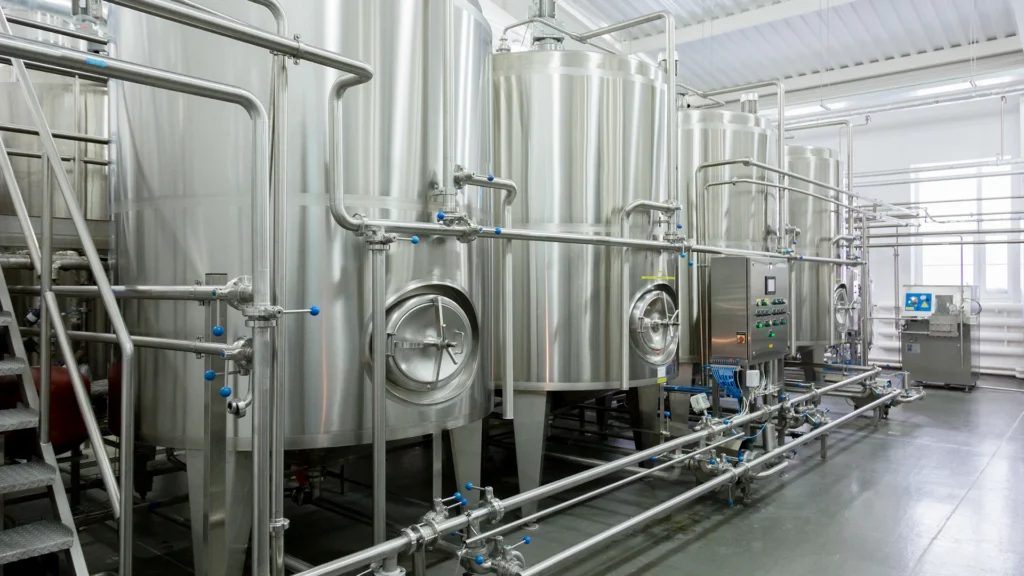

SS Tube for Beverage Production Lines

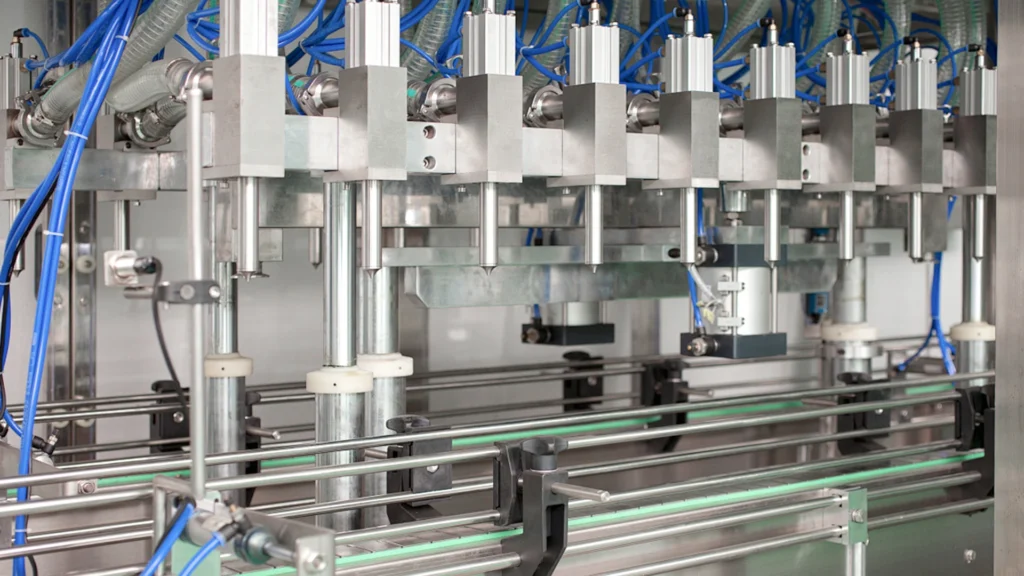

Stainless Steel Round Tube for Beverage Processing Facilities

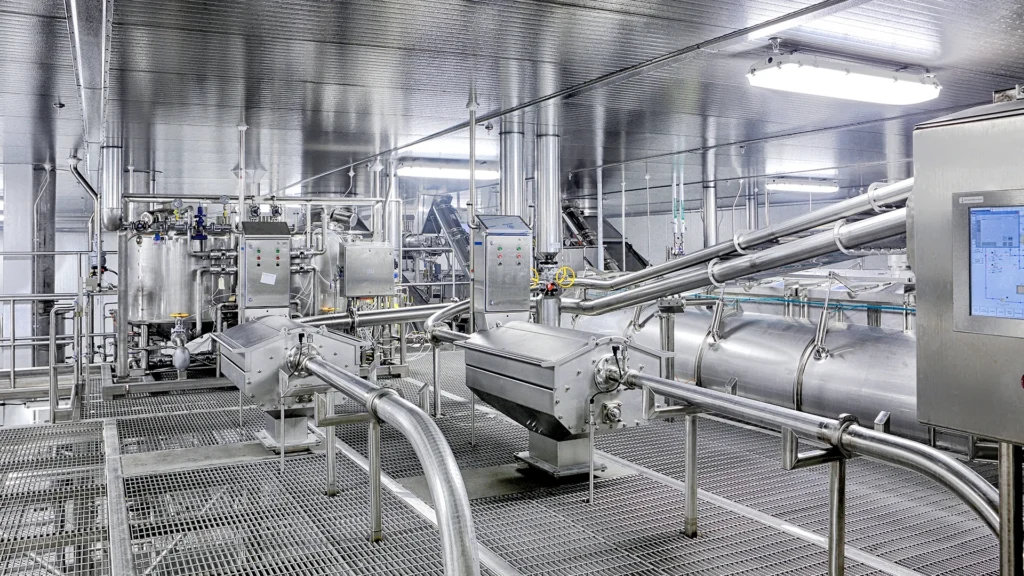

Stainless Steel Tube for Drink Manufacturing Plants

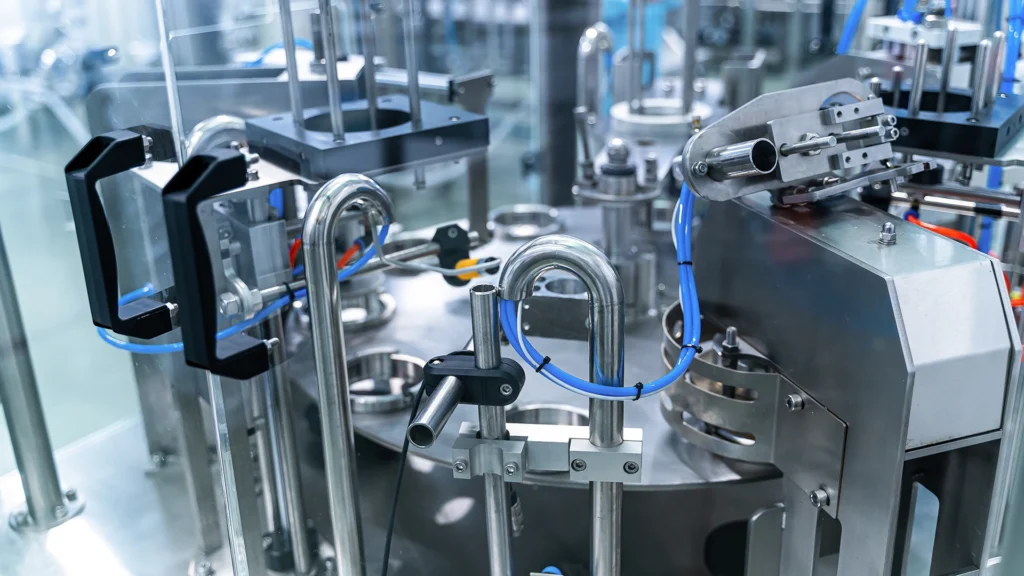

SS Tube for Dairy Processing Applications

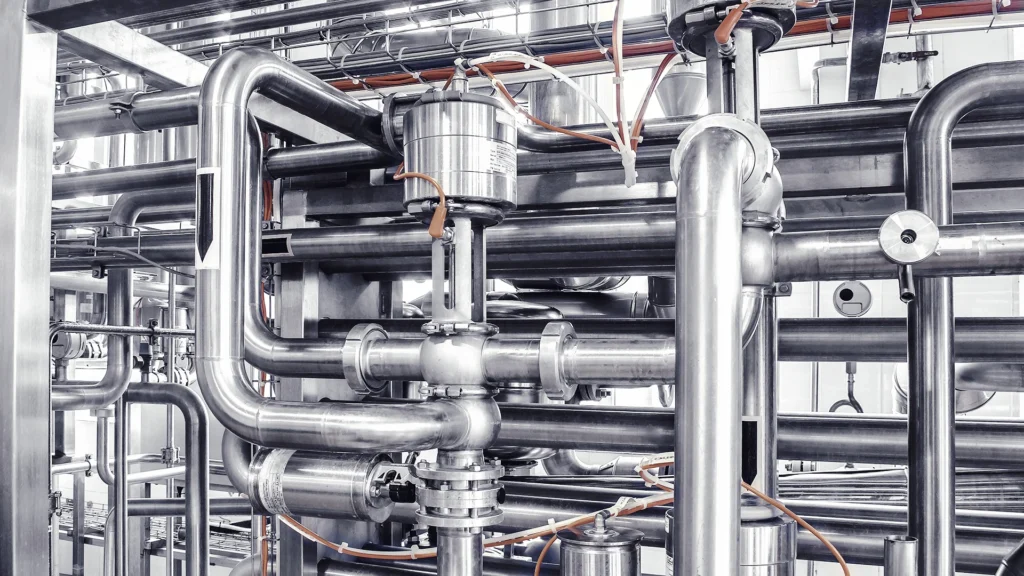

Stainless Steel Welded Tubes for Milk Transfer Lines

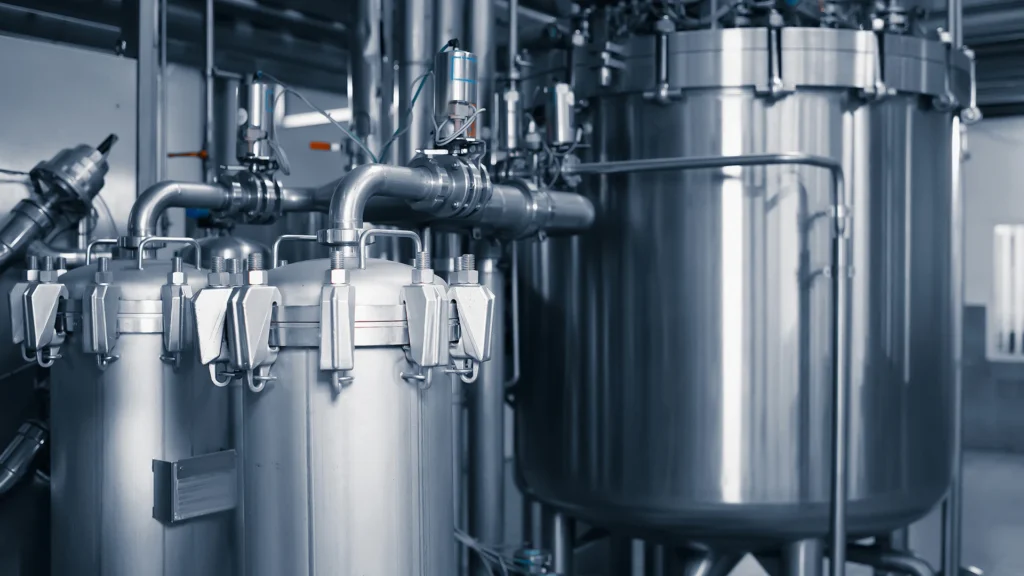

Stainless Steel Round Tube for Brewery Systems

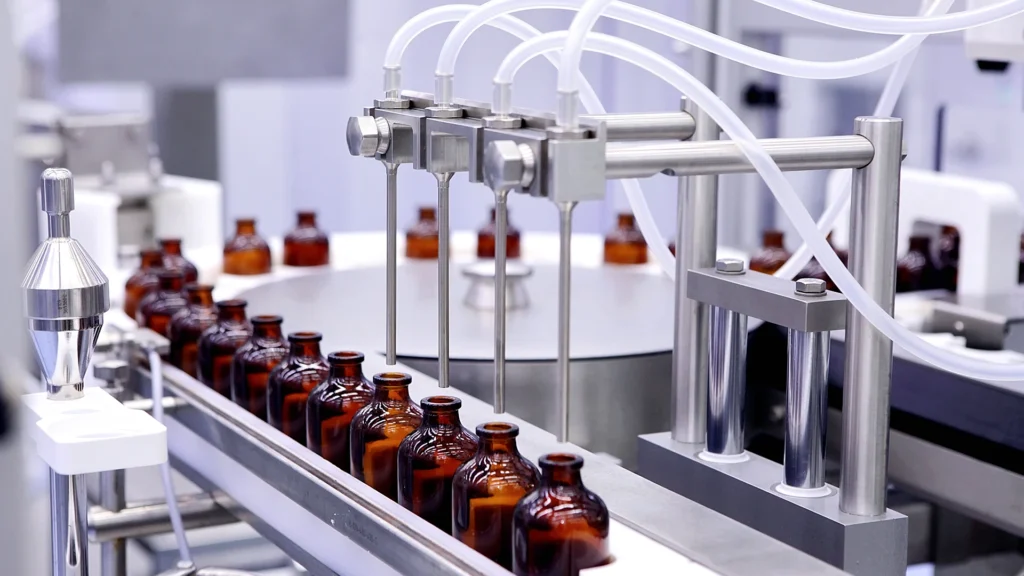

Stainless Steel Tube for Pharmaceutical Manufacturing Applications

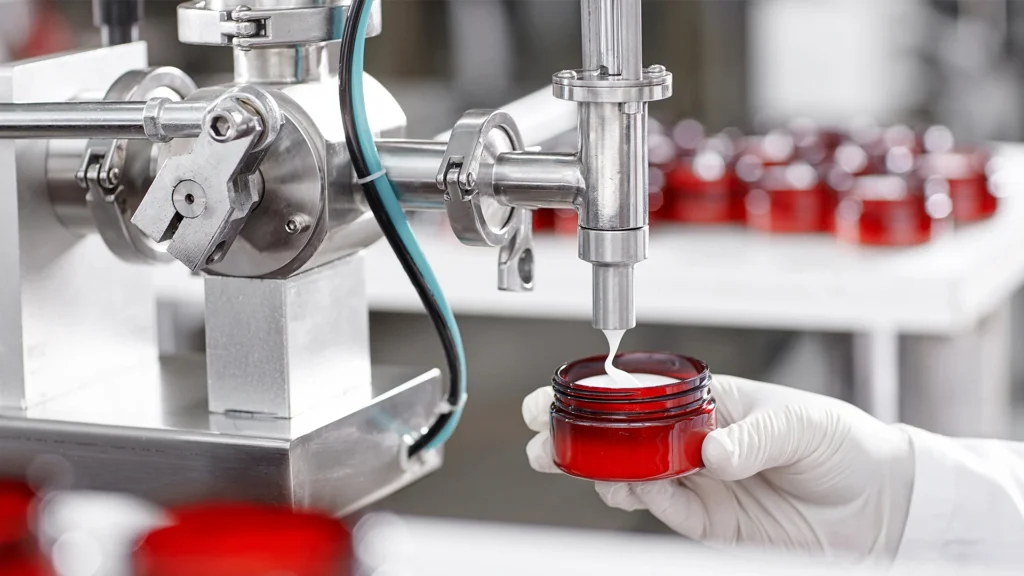

Stainless Steel Welded Tubes for Cosmetics Production
Manufacturing & Quality Control
ASTM A270 sanitary stainless steel tube requires strict production standards. Every step, from raw material selection to final inspection, has a direct impact on the tube’s hygienic performance and service life.
Raw Material Selection

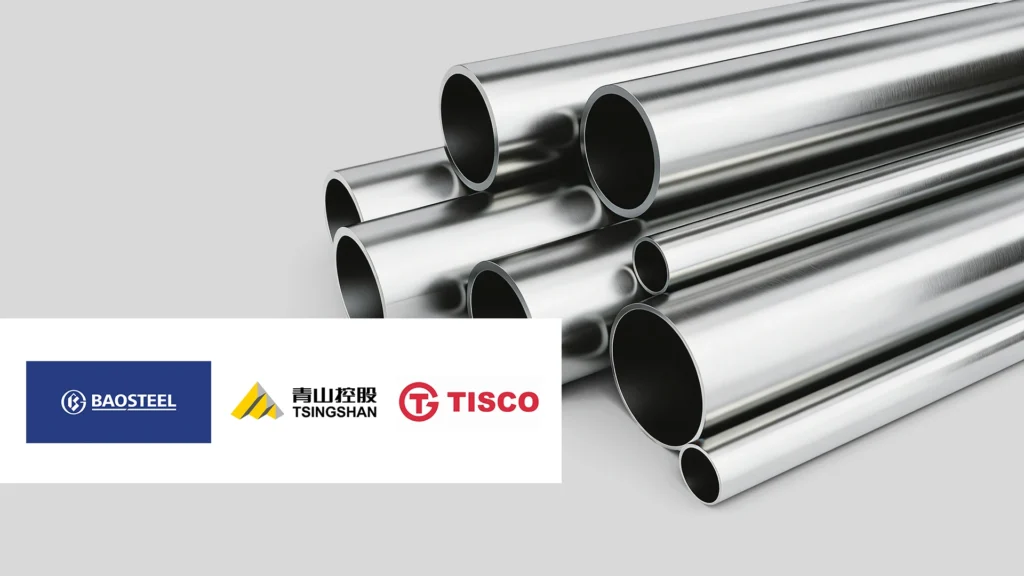

Production starts with careful raw material selection. We source high-quality stainless steel coils directly from China’s three major stainless steel mills: TISCO, BAOSTEEL, and TSINGSHAN.
The materials cover grades 304, 304L, 316, and 316L. Every batch comes with a Mill Test Report from the original mill. This confirms that the chemical composition and mechanical properties meet ASTM standards. It also ensures full quality control from the very beginning.
Production Process
We use fully automatic high-frequency water-cooled welding machines to form the tubes. Nitrogen gas is used during welding to protect the weld seam. This process ensures the tubes are 100% bendable and the welds are stable and crack-free.
After forming, the tubes go through polishing on both the inner and outer surfaces. This prevents fluid residue and bacterial growth inside the tube, and keeps the surface clean enough for sanitary applications.

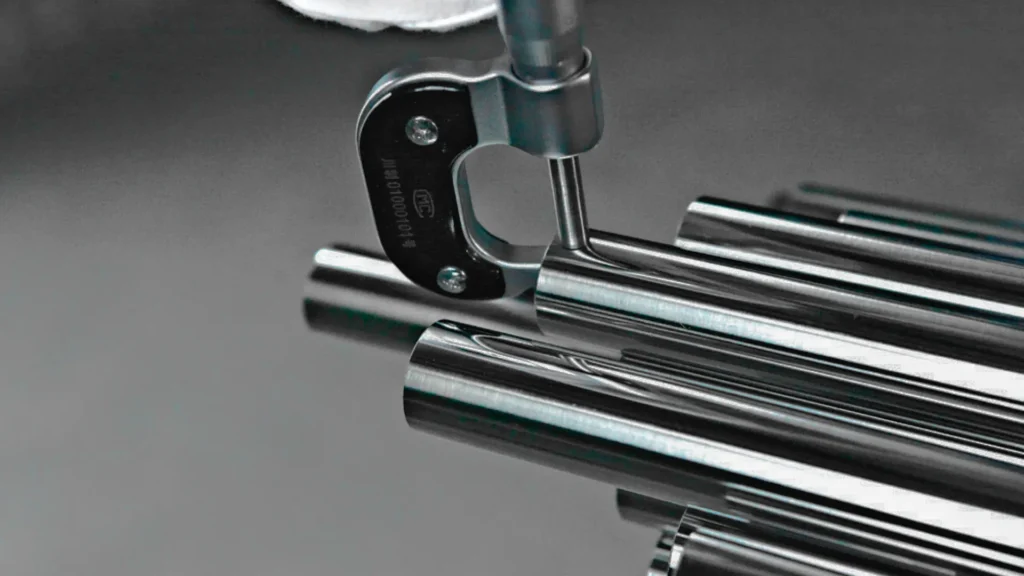

Quality Inspection and Testing
Every batch of A270 tubes goes through a strict multi-step inspection process before shipment. This includes dimensional checks, surface quality inspection, eddy current testing, and salt spray testing. We check the weld integrity, corrosion resistance, and overall quality of each tube. Every tube must meet ASTM A270 requirements before it leaves our facility.

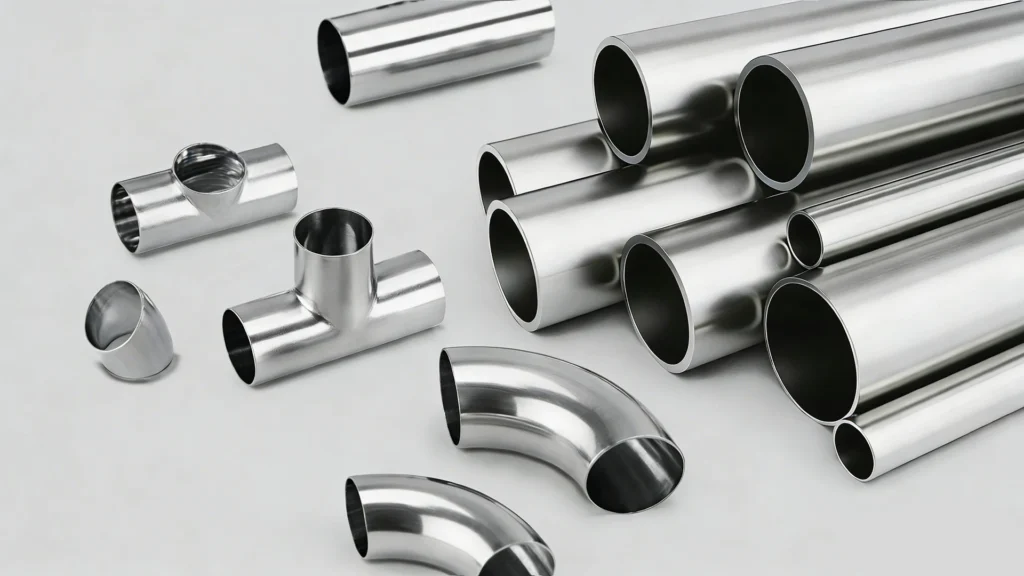

ASTM A270 Tube Fittings
We do not only supply stainless steel tubes. We also offer a full range of sanitary stainless steel fittings, including elbows, couplings, and tees, etc. The fittings are made from the same material grades as our A270 tubes. This keeps the material, hygiene standard, and corrosion resistance consistent across the whole piping system. We provide a one-stop sourcing solution from tubes to fittings.
